Ripple

Ripples are state layers used to communicate the status of a component or interactive element.

A state layer is a semi-transparent covering on an element that indicates its state. A layer can be applied to an entire element or in a circular shape.

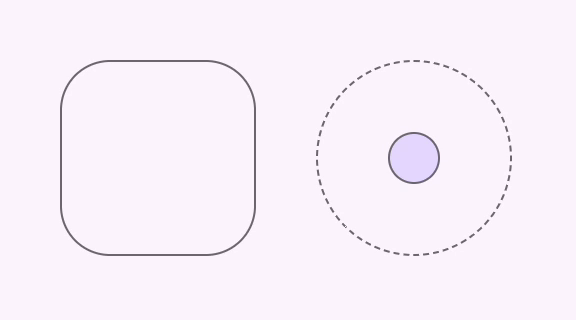

Two containers that display a bounded and unbounded ripple on interaction.

Interactive Demo

Link to “Interactive Demo”

View interactive demo inline.

Open interactive demo in new tab.

Usage

Link to “Usage”

Ripples display on hover and press pointer interactions. They may be attached to a control in one of three ways.

Attached to the parent element
```
<style>
  .container {
    position: relative;
  }
</style>
<button class="container">
  <md-ripple></md-ripple>
</button>
```
Attached to a referenced element
```
<style>
  .container {
    position: relative;
  }
</style>
<div class="container">
  <md-ripple for="control"></md-ripple>
  <input id="control">
</div>
```
Attached imperatively
```
<style>
  .container {
    position: relative;
  }
</style>
<div class="container">
  <md-ripple id="ripple"></md-ripple>
  <button id="ripple-control"></button>
</div>
<script>
  const ripple = document.querySelector('#ripple');
  const control = document.querySelector('#ripple-control');
  ripple.attach(control);
</script>
```

bookmark
ripples must be placed within a position: relative container.

Unbounded

Link to “Unbounded”

To create an unbounded circular ripple centered on an element, use the following styles.

.container {
  display: flex;
  place-content: center;
  place-items: center;
  position: relative;
}

md-ripple.unbounded {
  border-radius: 50%;
  inset: unset;
  height: var(--state-layer-size);
  width: var(--state-layer-size);
}

<style>
  .container {
    border-radius: 50%;
    height: 32px;
    width: 32px;

    /* Needed for unbounded ripple */
    display: flex;
    place-content: center;
    place-items: center;
    position: relative;
  }

  md-ripple.unbounded {
    /* Needed for unbounded ripple */
    border-radius: 50%;
    inset: unset;
    height: 64px;
    width: 64px;
  }
</style>
<button class="container">
  <md-ripple class="unbounded"></md-ripple>
</button>

Accessibility

Link to “Accessibility”

Ripples are visual components and do not have assistive technology requirements.

Theming

Link to “Theming”

Ripples support Material theming and can be customized in terms of color.

Tokens

Link to “Tokens”

Token	Default value
`--md-ripple-hover-color`	`--md-sys-color-on-surface`
`--md-ripple-pressed-color`	`--md-sys-color-on-surface`

All tokens

Example

Link to “Example”

<style>
:root {
  --md-sys-color-primary: #006A6A;
  --md-ripple-hover-color: var(--md-sys-color-primary);
  --md-ripple-pressed-color: var(--md-sys-color-primary);
}

.container {
  position: relative;
}
</style>
<button class="container">
  <md-ripple></md-ripple>
</button>

API

Link to “API”

MdRipple `<md-ripple>`

Link to “MdRipple <md-ripple>”

Properties

Link to “Properties”

Property	Attribute	Type	Default	Description
`disabled`	`disabled`	`boolean`	`false`	Disables the ripple.
`htmlFor`		`string`	`undefined`
`control`		`HTMLElement`	`undefined`

Methods

Link to “Methods”

Method	Parameters	Returns	Description
`attach`	`control`	`void`
`detach`	None	`void`
